Szczegóły Produktu:
|
| Rozmiar tabeli:: | 800*800 mm | Max ładunek ::: | 200 kg |
|---|---|---|---|
| Forma falowa:: | Półpuls pół sinusoidalny | Zakres przyspieszenia:: | 5-100 gr |
| Czas trwania impulsu:: | 6~18 ms | maksymalna zmiana prędkości: | 2,6 m/s |
| Wymiar maszyny (mm): | 900*960*800 | Waga maszyny (kg): | 2160 |
| Standardy: | GB/T2423.4, GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 itp. | Atrakcja:: | Powtórz testowanie uderzeń, maszyna do testowania powtarzanego uderzenia, elektroniczna maszyna test |
| Podkreślić: | SKM800 bump test machine,electronic component bump tester,repeated bump testing machine |
||

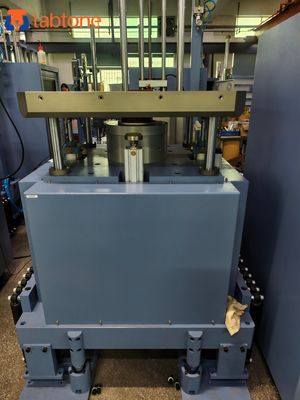

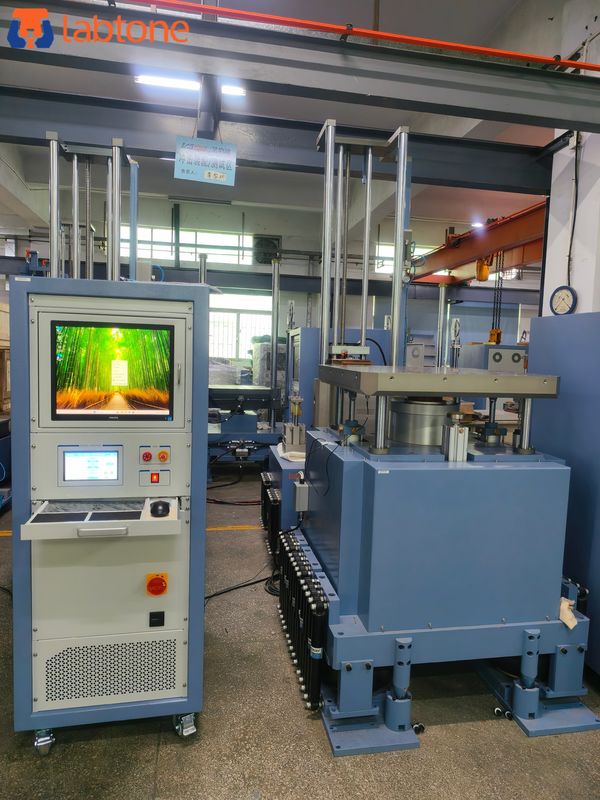

Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipmentand other electronic electrician products during transport or using which may be subjected to repeated shocks.
SKM500 provides high quality shock pulse capability with the added benefit of a must faster cycle time up to 120 shock impacts per minute. SKM500 Shock Test System can generate high energy impacts with velocity changes up to 6.8m/s.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
