Szczegóły Produktu:
|
| Numer modelu:: | RV5000 | Tabela drgań (mm):: | 700mm×700mm |
|---|---|---|---|
| Kierunek wibracji:: | Pionowy | Zakres częstotliwości:: | 10-75 Hz |
| Regulowany zakres przemieszczenia:: | 0–5 mmp-p | Dopuszczalny zakres przyspieszenia:: | 0-11G |
| MAX.LOADING WAGI:: | 150 kg | Tryb działania:: | Naprawiono / losowo / zamiatanie |
| Źródło zasilania:: | AC 220V 50/60Hz | Atrakcja:: | testy wibracyjne mechaniczne, stół wibracyjny |
| Podkreślić: | 150KG payload mechanical shaker table,mechanical vibration test system for battery,ISTA ASTM standard vibration test table |
||

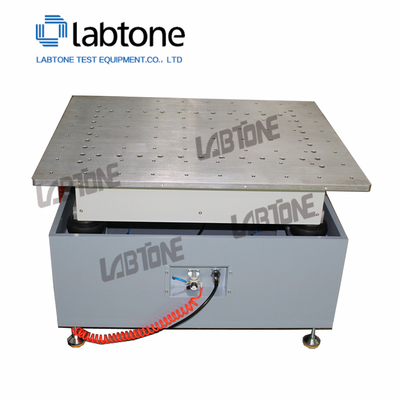

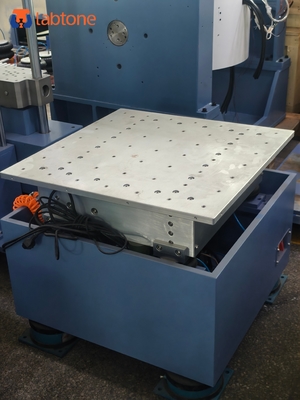

Mechanical vibration tester simulates vibration during transport for electronic products, components, spare parts, electromechanical products, and instrumentation, etc. Its vibration and reliability tests comply with the GB, UL, IEC and other standards.
Specification
| Specification | |||
| Model | RV3000 | RV8000 | RV5000 |
| Vibration Table (mm) Lx W | 600 x 500mm | 1000 x 800mm | 700mm×700mm |
| Frequency Range | 5-100 Hz | 5-60 Hz | 10----75Hz |
| Adjustable Amplitude (mmp-p) | 0-3 | 0-2.6 | 0—5 |
| Acceleration Range | 0-11G | 0-11G | 0---15G |
| Max.Payload (kg) | 130 | 300 | 150 |
| Control Interface | IBM PC Serial port Rs232 9P/USB Port | IBM PC Serial port Rs232 9P/USB Port | IBM PC Serial port Rs232 9P/USB Port |
| Test Method | Fixed frequency,Sweep frequency(linear/logarithm), | Fixed frequency,Sweep frequency(linear/logarithm), | Fixed frequency,Sweep frequency(linear/logarithm), |
| multi-stage random | multi-stage random | multi-stage random | |
| Waveform | Sine Wave | Sine Wave | Sine Wave |
| Vibration Direction | Up / Down | Vertical | Vertical |
| Power Supply | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Dimension of equipment | W770 mm×L740 mm×H655 mm | ||
1) Using centrifugal excitation method, low mechanical noise.
2) Using synchronous reverse movement, excellent table evenness.
3) Stepless amplitude adjustment, meet different product test requirements.
4) Use-friendly operation control interface
5) Fixed with shock absorption bags without special foundation.
Customer Services
Presales:
In-Sales:
After-Sales:
Company profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty and are available directly from our factory in Dongguan, China. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having a qualified staffs of and experts to solve your problems.
We sincerely invite you to visit our factory.
