Szczegóły Produktu:
|
| Znamionowa siła sinusoidalna: | 300 N (30kg.f) | Zakres częstotliwości: | 5-6500 Hz |
|---|---|---|---|
| Max. Przyśpieszenie: | 35 gr | Max. Maks. Amplitude Amplituda: | 12 mm |
| Max. Prędkość: | 1,5 m/s | Wymiar maszyny: | 200 mm dł. x 265 mm gł. x 200 mm wys |
| Podkreślić: | small vibration table testing equipment,high precision vibration meter calibration,vibration table with warranty |
||

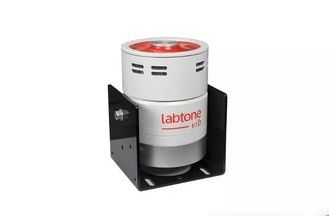

Low Acoustic Noise Vibration Test Machine Small Shaker for University
Introduction:
ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.
Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Features:
Technical Specifications:
| System Model | ET55 | ET30 | ET10 |
| Max. sine force Kg.f (N) | 55 (550) | 30 (550) | 10 (550) |
| Frequency range (Hz) | 5～5000 | 5～6500 | 5～10000 |
| Max. displacement (mm p-p) | 20 | 12 | 10 |
| Max. velocity (m/s) | 1.3 | 1.5 | 1.5 |
| Max. acceleration (g) | 30 | 35 | 35 |
| Max. load (kg) | 20 | 2 | 1 |
| Armature weight (kg) | 1.8 | 0.45 | 0.3 |
| Over all Dimension mm (LxWxH) | 380 x 330 x 445 | 200 x 265 x 200 | 184 x 95 x 188 |
| Shaker weight | 97 Kg | 16 | 15 |
| Cooling type | Air Cooling | Air Cooling | Air Cooling |

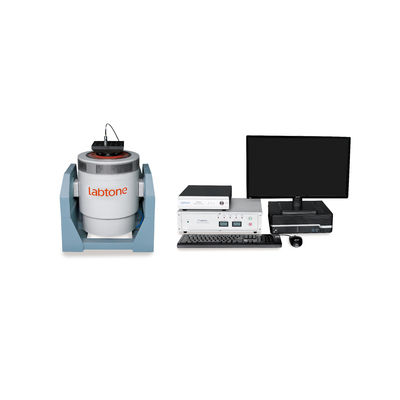

Introduction to vibration controller
The vibration controller is of advanced distribution structure system, and closed-loop control is achieved by DSP processor. PC is independent of control loop to ensure real-time and high efficiency of the control system so as to timely and rapidly respond to any changes of the test system, and ensure control stability and high precision. 32-bit floating-point DSP processor with primary frequency up to 300MHz and 24-bit resolution ADC/DAC are used for hardware in coordination with high precision floating-point digital filtering and low noise design technology of hardware circuit. The dynamic random control range of the controller is more than 90dB and the signal to noise ratio is more than 100dB.
Our Services:
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |
