Szczegóły Produktu:
|
| Szczyt siły sinusoidalnej: | 32 kN (3200 kg.f) | Siła szoku: | 64 kN (6400 kg.f) |
|---|---|---|---|
| Maksymalna prędkość: | 2,0 cm/s | Zakres częstotliwości: | 2-2500 Hz |
| Maksymalne przemieszczenie: | 500,8 mm | Zasilanie: | 3-fazowy prąd zmienny 380 V / 50 Hz |
| Podkreślić: | High Frequency Vibration Test Machine,Vibration Testing Machine with ISO 10816 Standard,Laboratory Vibration Tester 2-4000Hz |
||

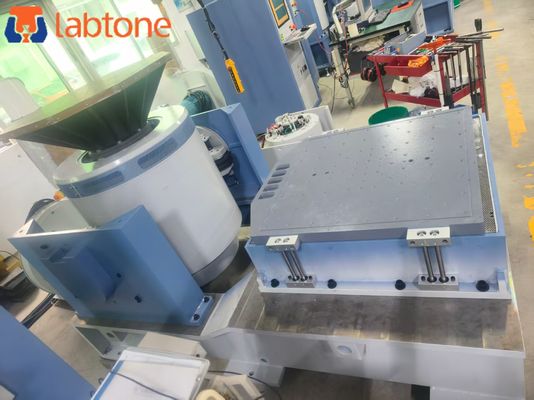

High Frequency Vibration Test Machine For Laboratory Test With Vibration Standard ISO 10816
The purpose of vibration testing is to make a series of controllable vibration simulation in lab, no matter generated by natural or man-made vibration environment; such as waves, tidal flaps, wind, earthquake or rain and so on. It is to test if the product is capable of sustaining the vibration environment exerted from transporting or usage along its effective life cycle; and certify the standard of design & functional requirement of product. The value of vibration testing is to confirm the reliability of products and effectively screen out the bad products in factory; avoiding damages occurred at arrival; and to assess the failure analysis on the non-performing products; expecting to reach a high standard, high-reliability products. The vibration test stresses on the continuity and fatigue; and contributes to the understanding of product’s status under vibration circumstance in a normal environment; and avoids the product’s unpredictable damage caused under certain vibrating frequency for a long time.
Specifications:
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 | EV232 | EV240 | EV250 | EV260 |
| Frequency Range(Hz) | 2-4000 | 2－2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-2500 |
| Max.Force(kg.f) |
300 (2.94kN) |
300 (2.94kN) |
600 (5.88kN) |
600 (5.88kN) |
1000 (9.8kN) |
2000 (19.6kN) |
3200 (31.36kN) |
4000 (39.2kN) |
5000 (49kN) |
6000 (58.8kN) |
|
Max.Displacement (mmp-p) |
25 | 38 | 25 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Max.Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
| Max.Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
| Max.Load(kg) | 110 | 120 | 200 | 200 | 300 | 400 | 500 | 800 | 1000 | 1000 |
| Vibrator Model | VG300/25 | VG300/40 | VG600/25 | VG600/50 | VG1000/50 | VG2000/50 | VG3200/50 | VG4000/50 | VG5000/50 | VG6000/50 |
| Armature Weight(kg) | 3 | 3 | 6 | 6 | 10 | 20 | 30 | 40 | 50 | 50 |
| Armature Dia.(mm) | ￠150 | ￠150 | ￠200 | ￠200 | ￠240 | ￠320 | ￠400 | ￠400 | ￠450 | ￠450 |
| Cooling Method | Forced Air Cooling | |||||||||
| Vibrator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 | 2000 | 2500 | 3500 | 3800 |
Company Profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Vibration Test Machine with Head expanders
