Szczegóły Produktu:
|
| Siła sinusoidalna:: | 1100kg.f(10kN) | Siła szoku:: | 2200kg.f(22kN) |
|---|---|---|---|
| Amplituda:: | 51 mm | Max Velocity:: | 2,0 m/s |
| Atrakcja:: | elektrodynamiczny układ wibracyjny, sprzęt do testowania wibracji | ||
| Podkreślić: | MIL STD 810G electrodynamic shaker,laboratory vibration test system,transportation simulation shaker with warranty |
||
Vibration Test System Description
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
| Item | Configuration | Qty. |
| A | Vibration shaker | |
| A11S24 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B402S blower (including silencer and Duct ) | 1 set | |
| Horizontal slip table HG50M | 1 set | |
| Head Expander VT50CM | 1 set | |
| B | Power Amplifier | |
| LA10K power amplifier(including Field power supply) | 1 set | |
| C. |
Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| D |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| E | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
Features
Specifications
| Model | EV211 |
| Max Sine Force (kg.f) | 1100 |
| Frequency Range (Hz) | 1~3300 |
| Max Displacement (mmp-p) | 51 |
| Max Acceleration (g) | 100 |
| Max Velocity (m/s) | 2 |
| Max Load (kg) | 300 |
| Armature Weight (kg) | 11 |
| Armature Diameter (mm) | 240 |
|
Shaker Dimensions L*W*H (mm) |
915*740*780 |
| Shaker Weight (kg) | 890 |

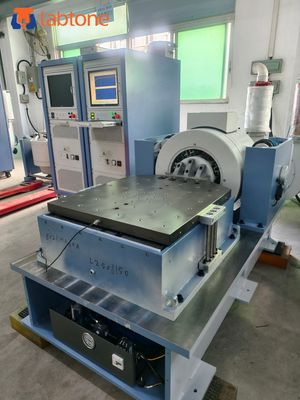

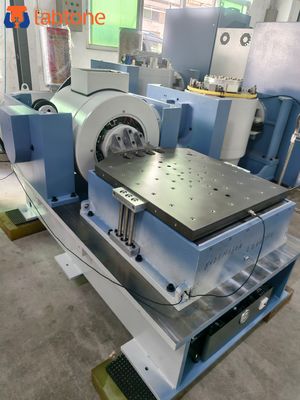

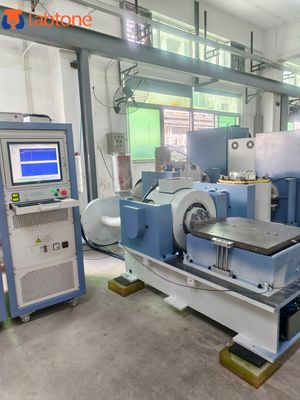

Picture details:
