Szczegóły Produktu:
|
| Nazwa: | System testowy wstrząsów upadkowych o wysokim przyspieszeniu do testowania smartfonów o wysokich sta | Rozmiar tabeli: | 250 x 250 cm |
|---|---|---|---|
| Maksymalna waga próbki (kg): | 10 kg | Puls uderzeniowy: | pół sinusa |
| Przyśpieszenie: | 30000g | Zakres czasu trwania impulsu (ms): | 0,1-11 ms |
| Podkreślić: | Shock Test System with touchscreen interface,Shock Test System for easy monitoring,user friendly Shock Test System |
||

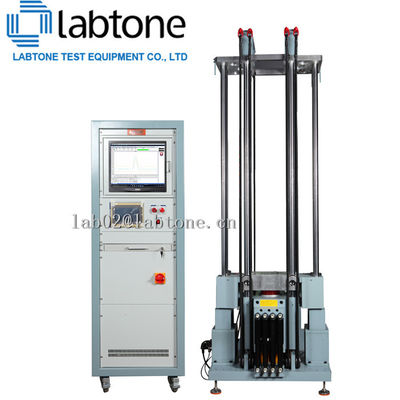

High Accelration Drop Shock Test System For High Standard Smartphone Test
High Perfermance Shock Test System Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials
Light emitter and light receptor will detect presence of human in danger zone. Operation will be stopped to protect personal safety.
1) User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
2) Half sine, square waveform shock pulse programmers.
3) High rigidity shock tables.
4) A full range of safety features.
5) Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock .
6) Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation
High Perfermance Shock Test Systems
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
|||
Standard Shock Test systems
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
Our Service
Pre-Sales Service
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
